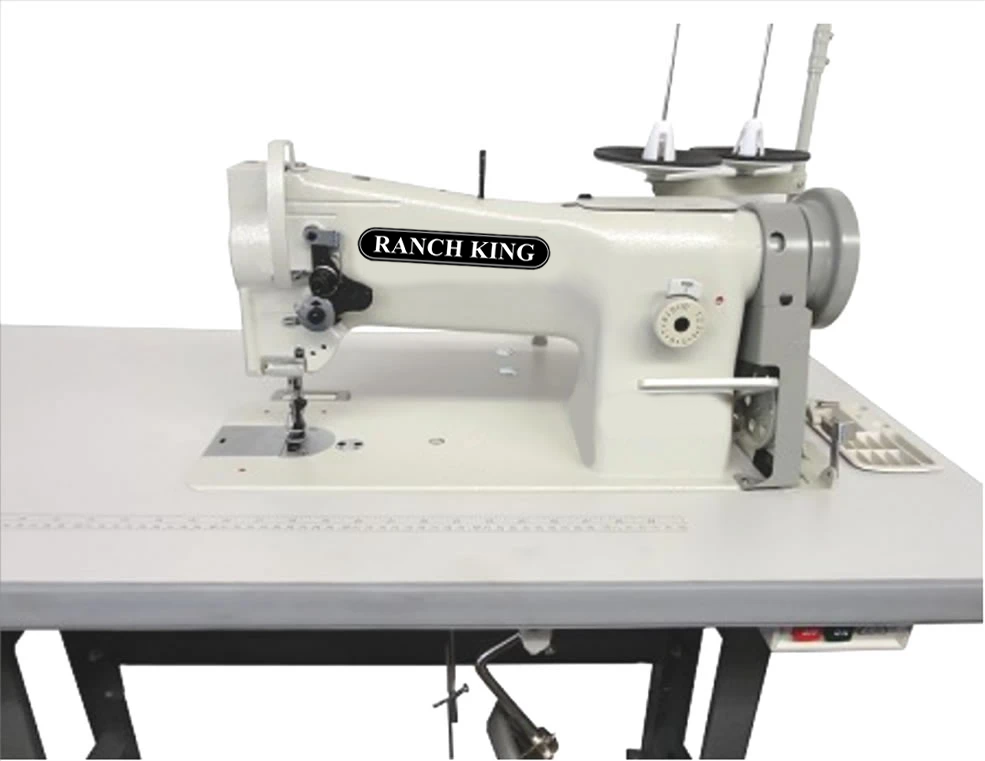

The RANCH KING 206RB (RK206RB) is an industrial Triple Feed, Heavy Duty, Single Needle, Walking Foot Lockstitch Sewing Machine. It features a Centralized Arm Lubrication, Reservoir-Oiled Hook, Micrometric Control Valve, Large Horizontal Axis Rotary Hook & Bobbin, Adjustable Reverse Feed, a Locking Stitch Regulator, and a Safety Clutch.
The RK206RB is perfect for sewing light to heavy-weight materials such as Leather, Vinyl, Upholstery, Synthetics, Canvas, and various Coated and even Laminated products. This machine will easily stitch Auto, Boat & Furniture Upholstery, Tarpaulins, Covers, Sails, Tents, Camping Trailer Covers, Awnings, Umbrellas, Tops, Bags, Luggage, Handbags, Travelware Accessories, Sports & Camping Equipment, Wearing Apparel, Outdoor Clothing, Canvas Shoes, Slippers, Orthopedic Appliances and more!
FEATURES:
- Extra-long stitch – 2-1/2 S.P.I. (10mm)
- Large Bobbin. Bobbin can be changed without removing the object being sewn
- Thread release finger (for heavy thread)
- High presser foot lift – 9/16″ (14mm)
- Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
- All gear-driven hook mechanisms. Large horizontal axis hook
- Safety clutch with push-button re-engagement
- Adjustable reverse stitching can be the same length as the forward stitch
- Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
- Walking feet, needles, and other attachments interchangeable with Consew models 226R-2, 255RB-2
- Needle plate, foot, and feed dog can be changed for special operations
- Standard attachments easily installed
- Compound feed, walking foot mechanism insures even feeding of material
- Locking stitch regulator prevents changes in stitch length from vibration
- 3300 stitches per minute
- Safety clutch with push button re-engagement
- Large horizontal hook
- Reverse feed
- 9/16″ clearance underfoot
- Heavy-duty single needle lockstitch
- Compound feed and alternating presser feet (walking foot and needle feed)
- Centralized Arm Lubrication
- Reservoir-Oiled Hook with Micrometric Control Valve
- Three stitches to the inch
- Large bobbin
- Large horizontal axis hook
- Bobbin can be changed without removing the object being sewn
- Thread release finger (for heavy thread)
- High presser foot lift – NOW 9/16″ (14mm)
- Reverse stitching
- All gear-driven hook mechanism
- Stitches per minute – 3300 max
- Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
- Needle feed and walking foot mechanism identical to Consew Model 225/226R-2 including take-up and tension
- Standard feet and attachments interchangeable with Consew Models 225/226R-2
- Uses the same welt feet and needles as Consew Models 225/226R-2 and similar types
- Needle plate, foot, and feed dog can be changed for special operations
- Standard attachments easily installed
- Compound feed, walking foot mechanism insures even feeding of material
- Number of Needles 1 (Single)
- Feeding Mechanism Walking Foot
- Workspace Standard Workspace
- Standard or Full Function Standard Functions
- Speed, Max (S.P.M.) 3300
- Clearance Under Presser Foot 9/16″ (14mm)
- Stitch Length 2 1/2 s.p.i. (10mm)
- Hook Size Large
- WorkSpace 10 5/16″ (258mm)
- Needle 135 x 17
- Bobbin Pre-Wound M
- Bed Size 7″ 18 7/8″ (178mm x 480mm)
- Stitch Type 301
- Gross Weight 82 lbs. (37.25 kgs)
- Total Carton Size 23″ x 10″ x 22″
- Needle Bar Stroke 1 5/16″ (33mm)
- Hook 18033
